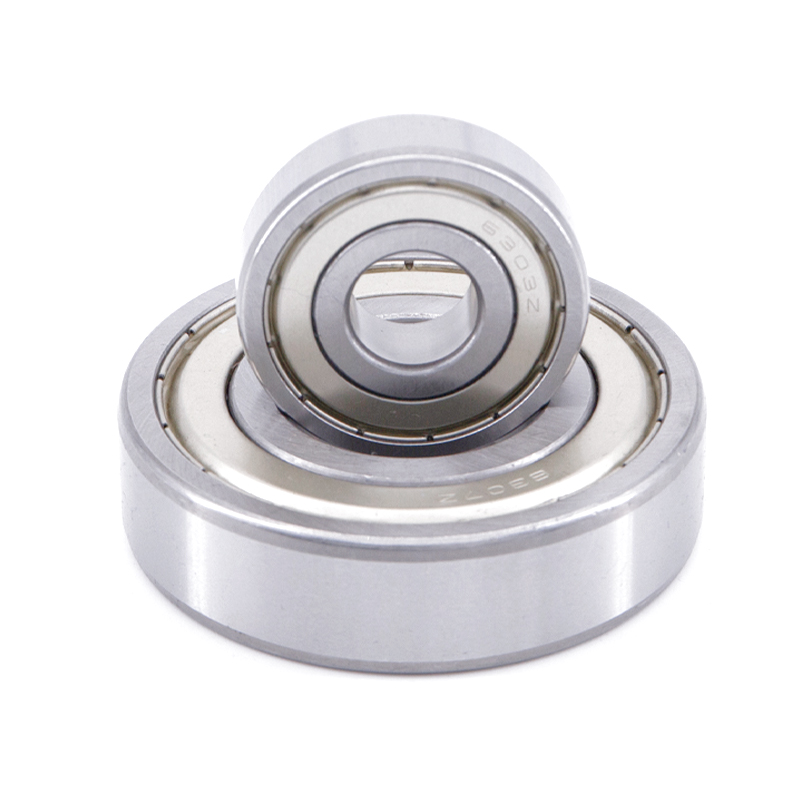

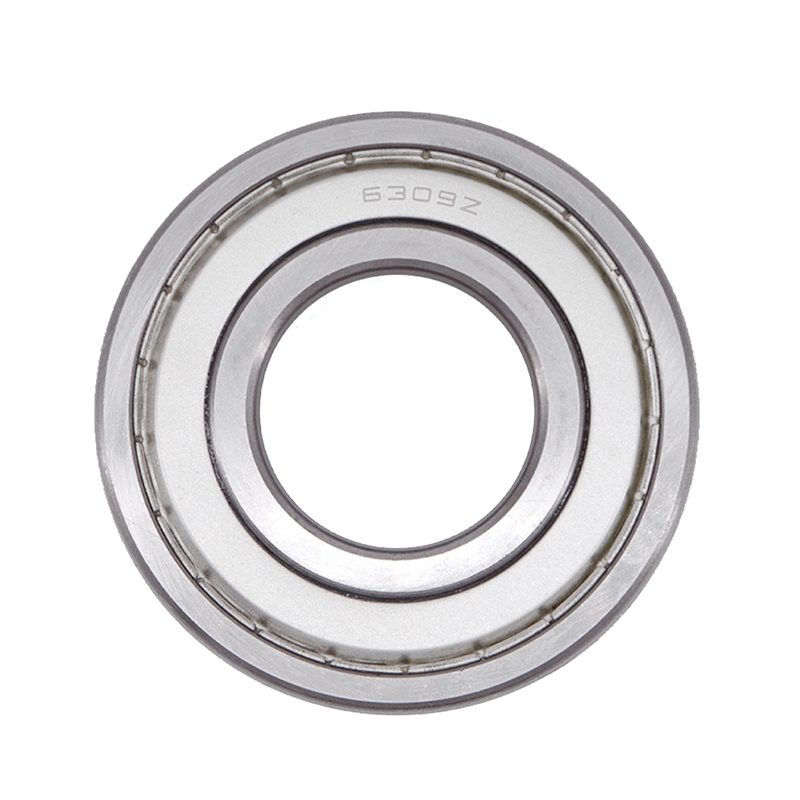

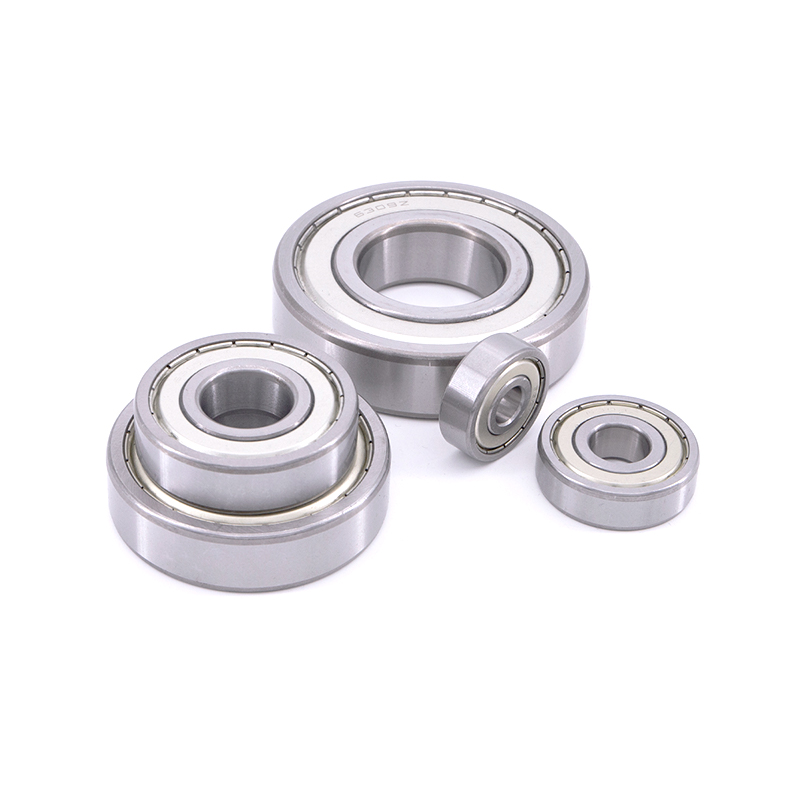

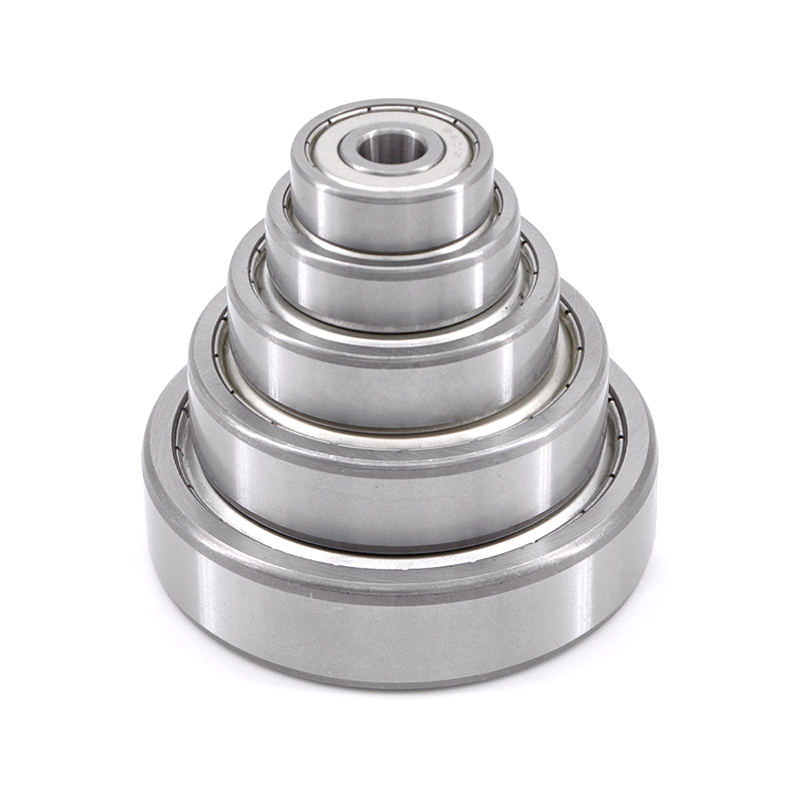

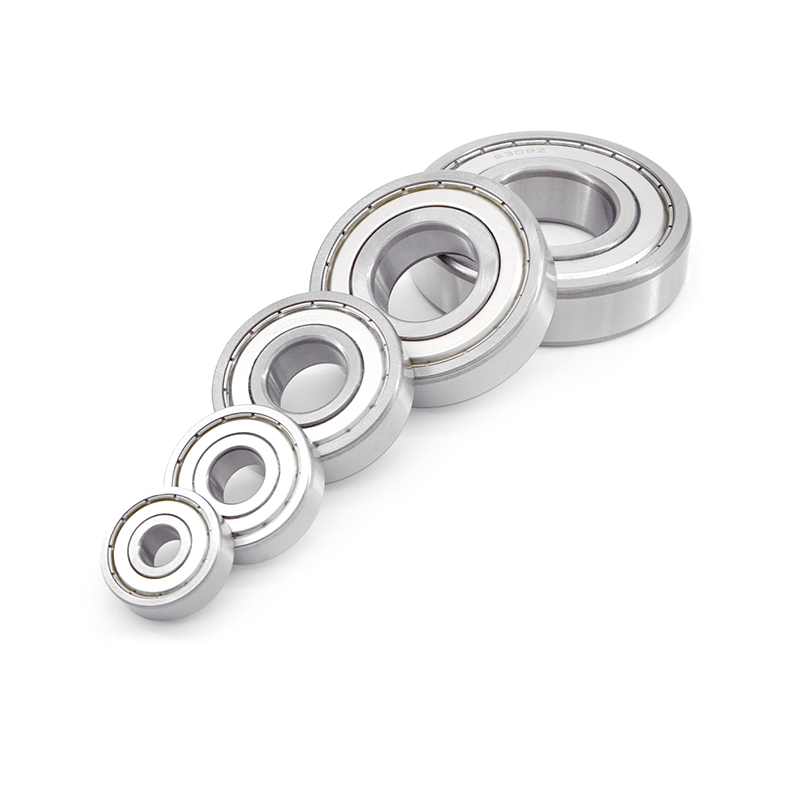

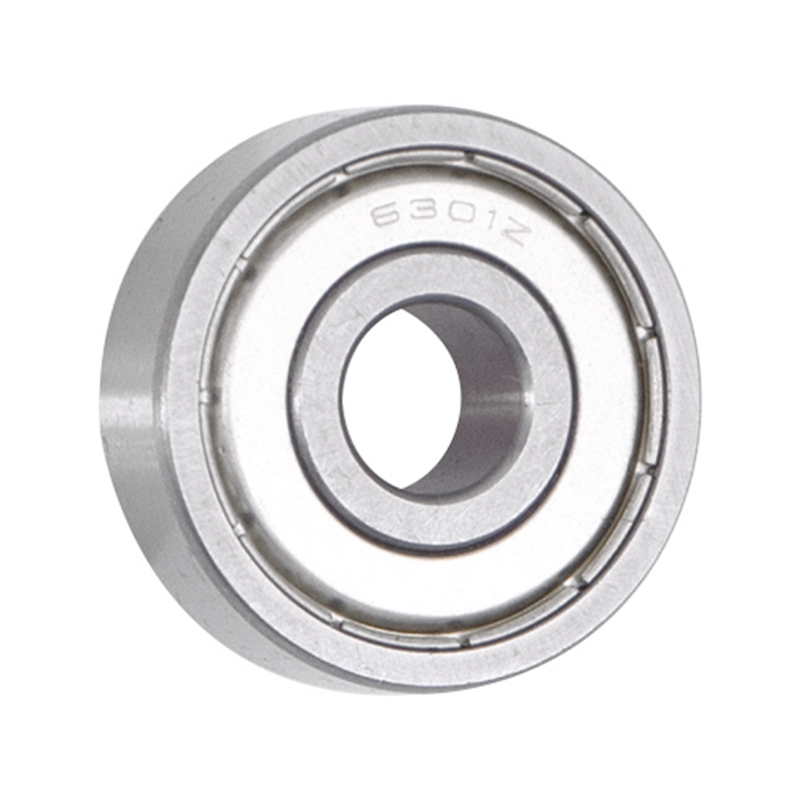

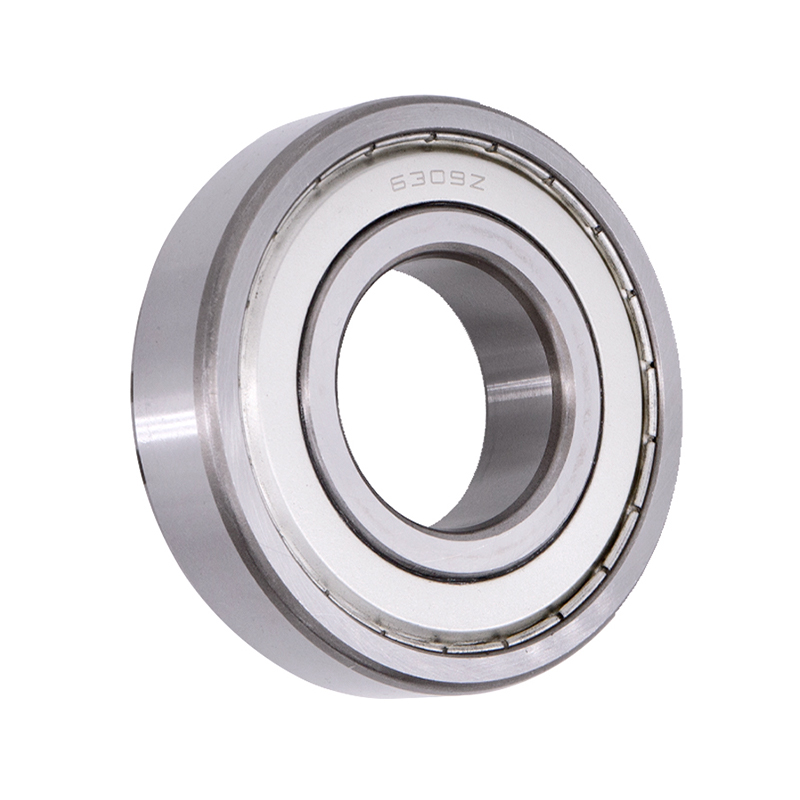

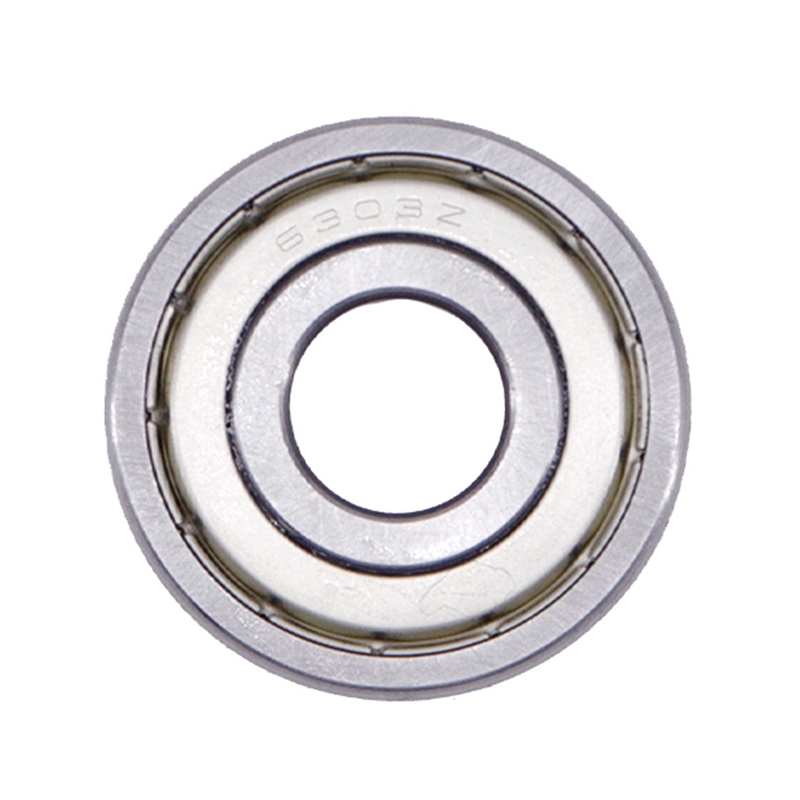

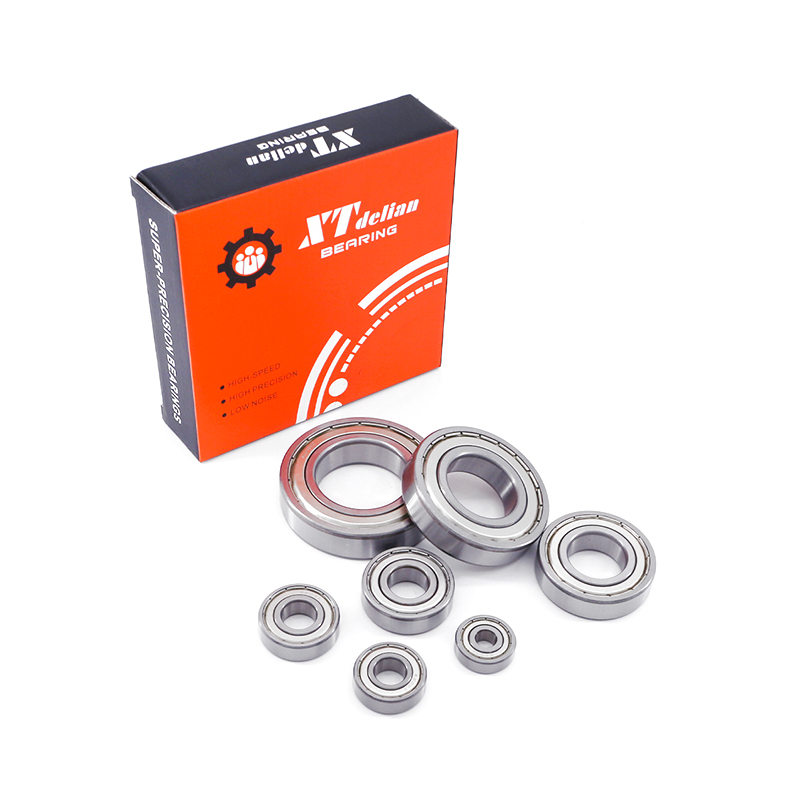

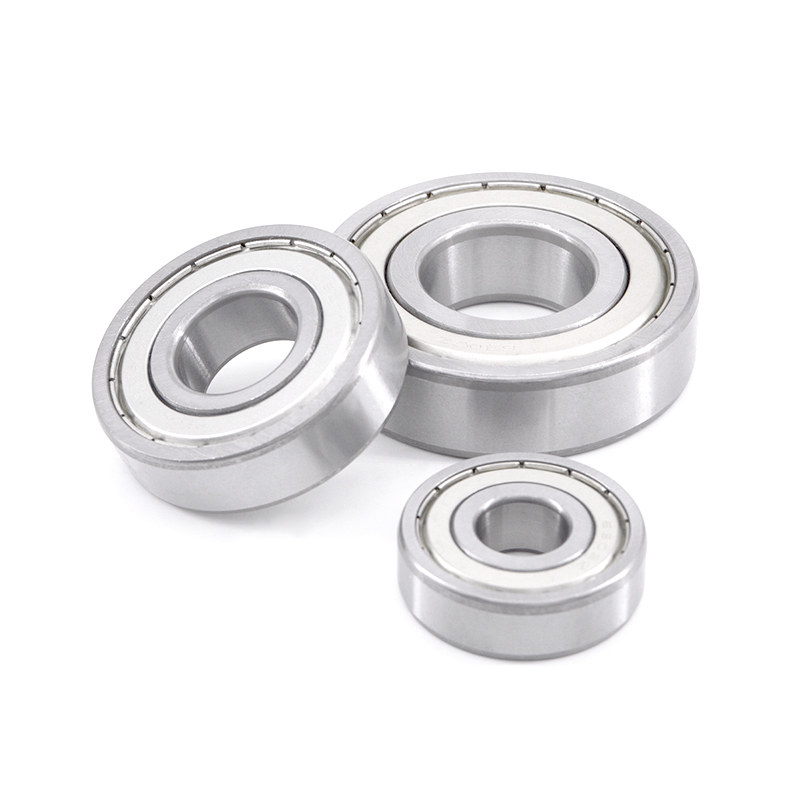

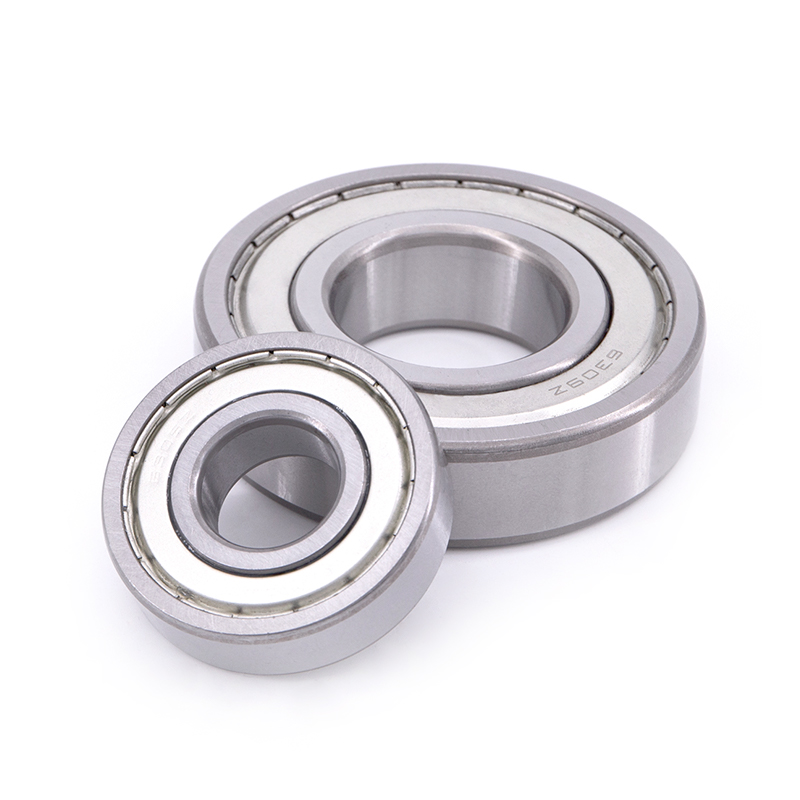

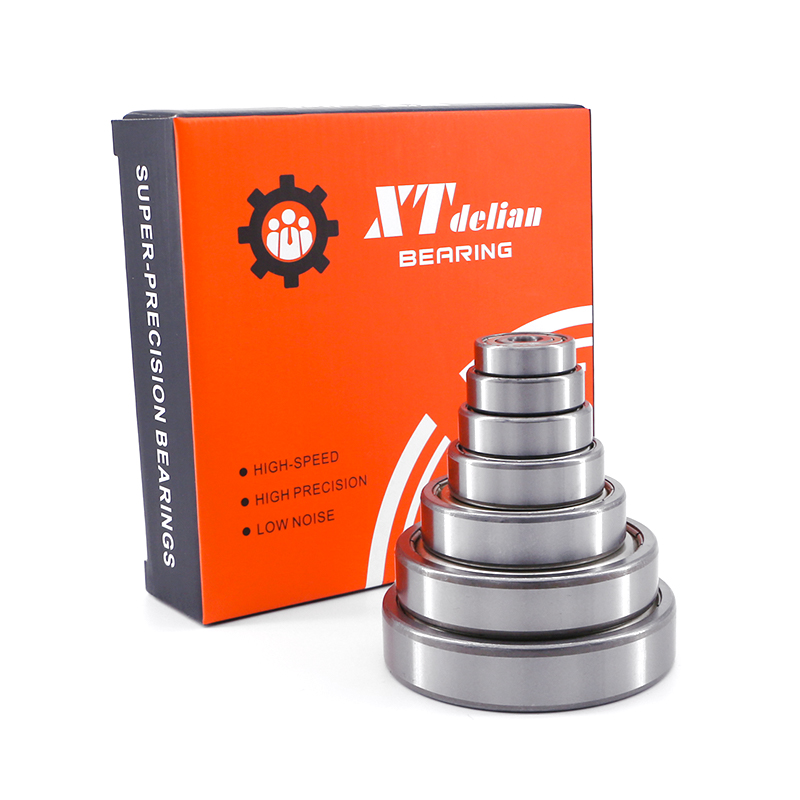

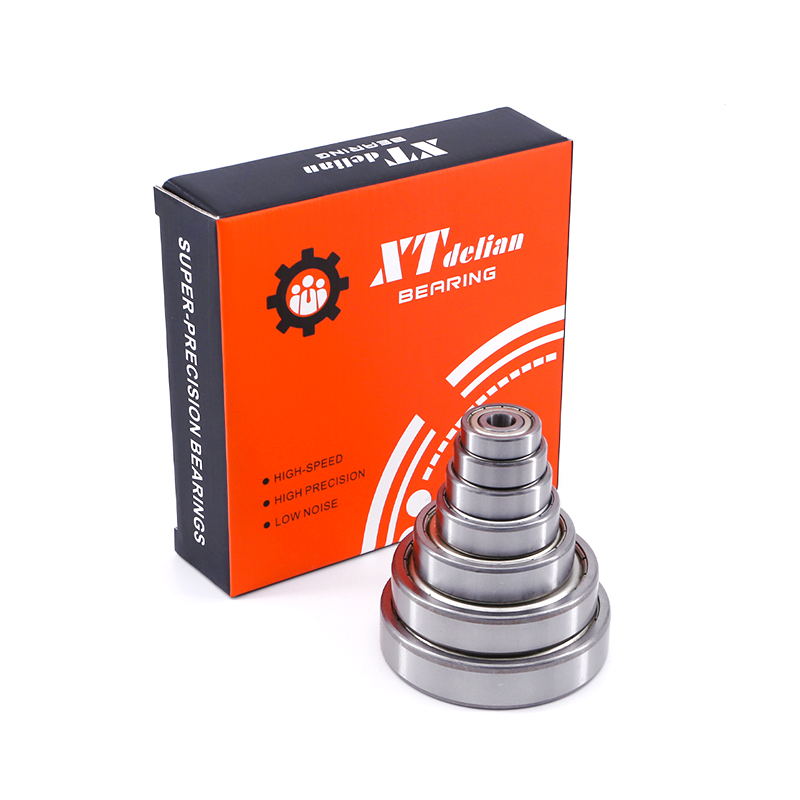

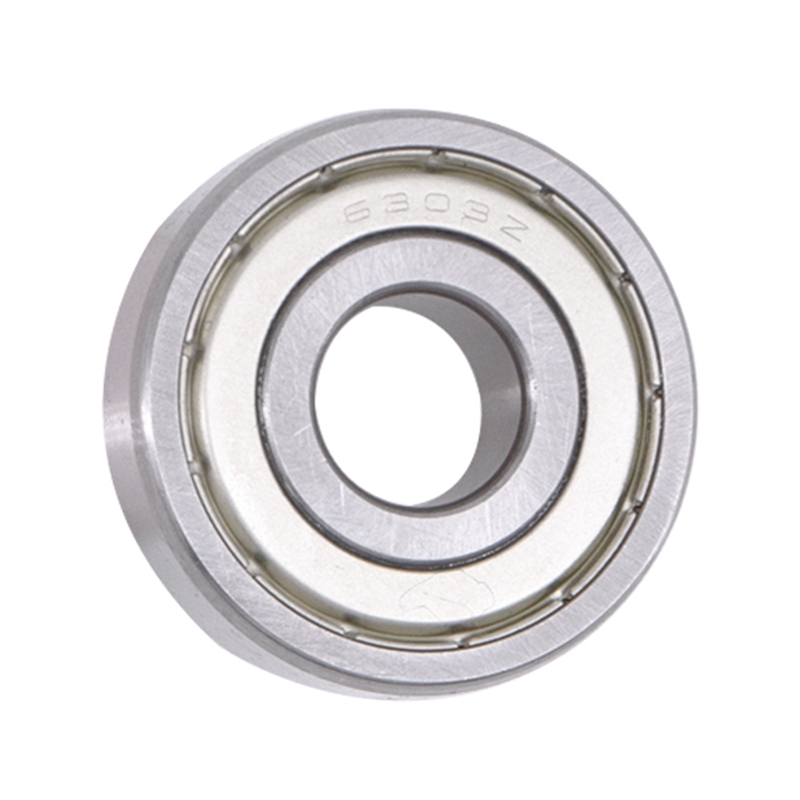

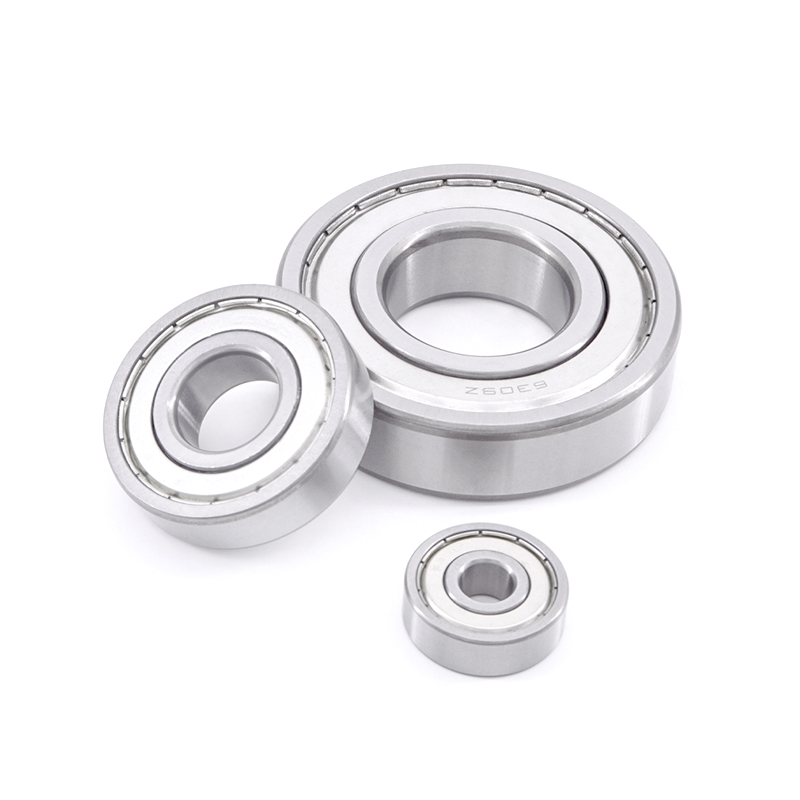

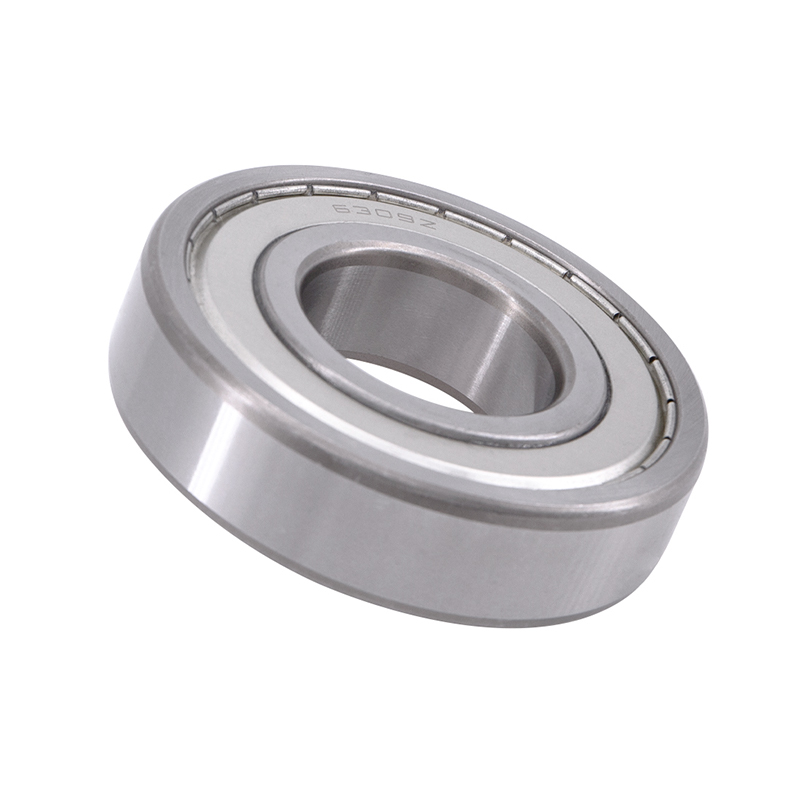

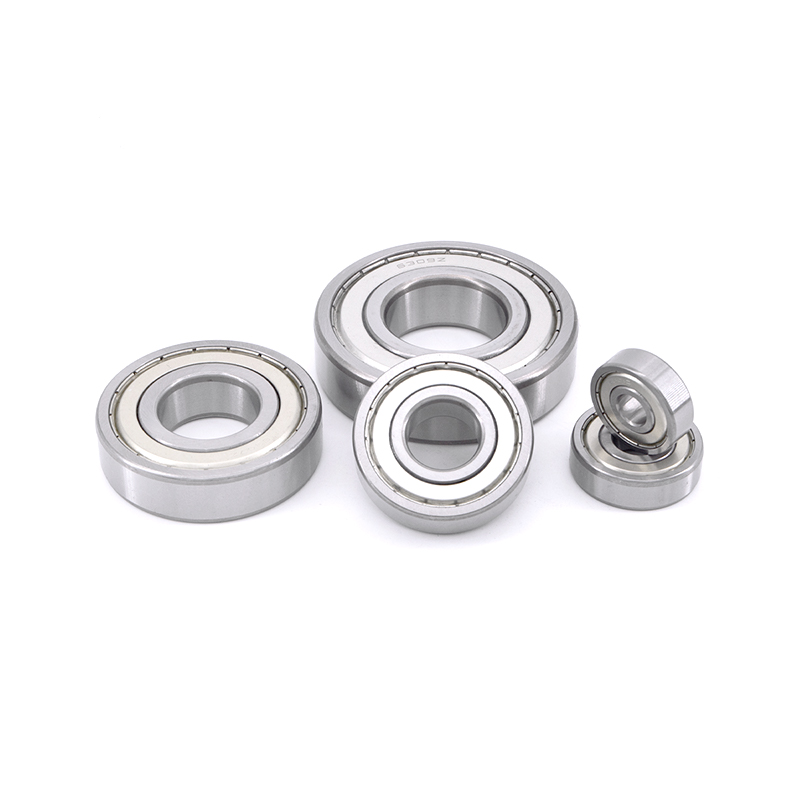

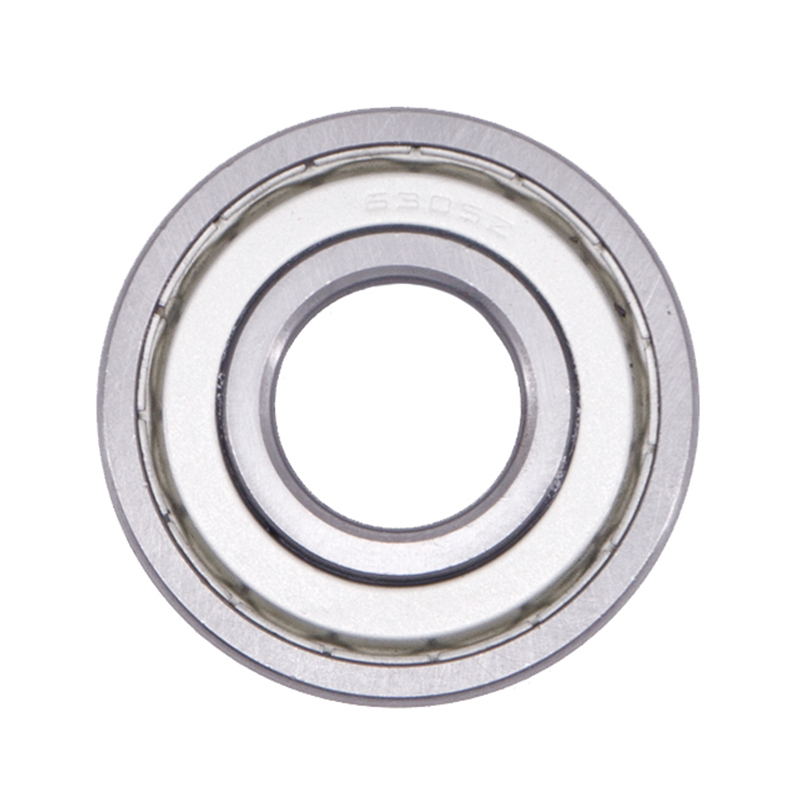

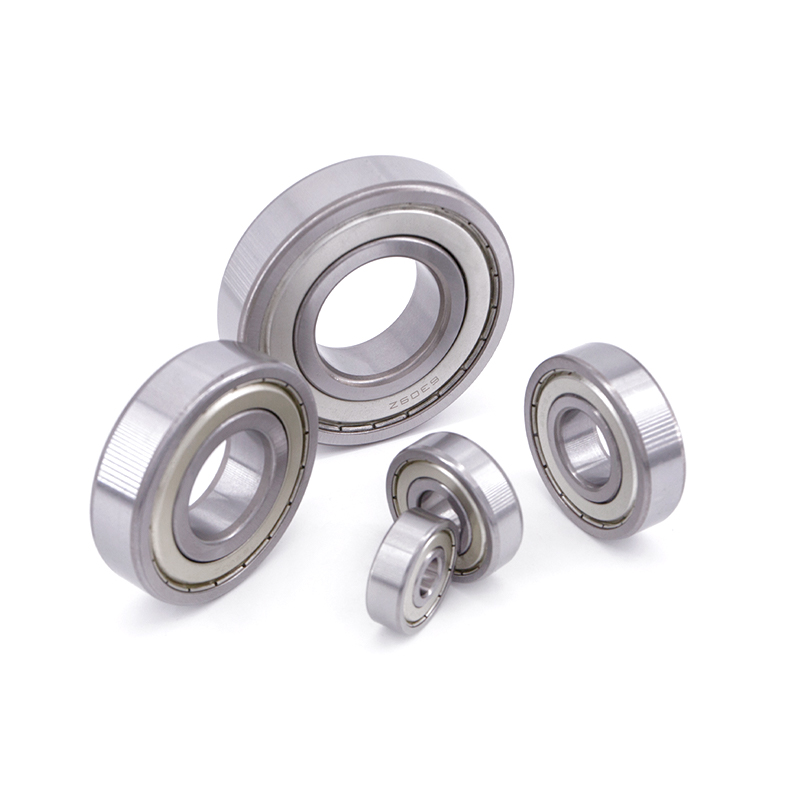

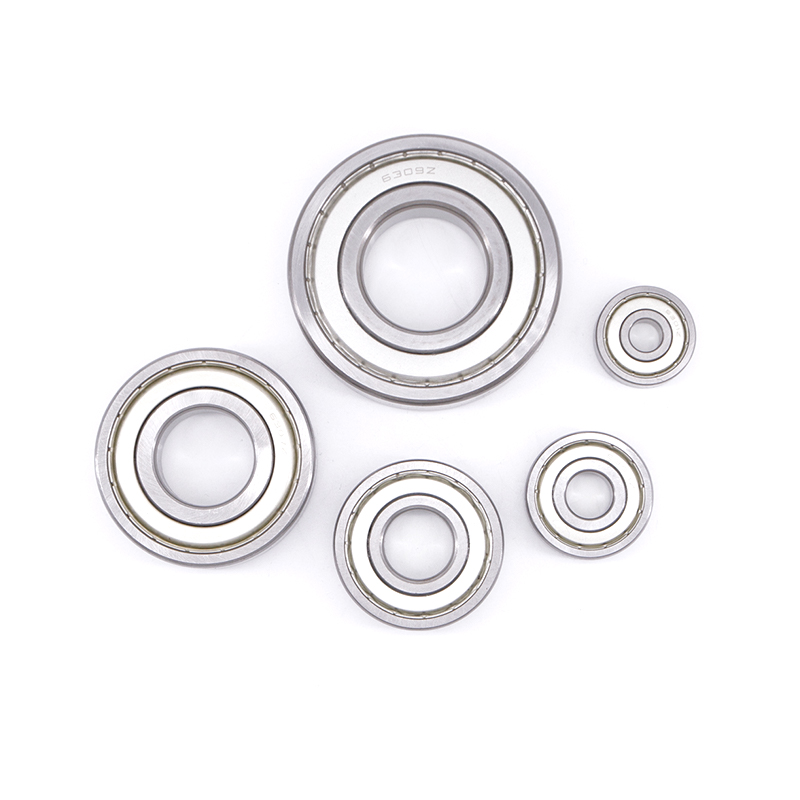

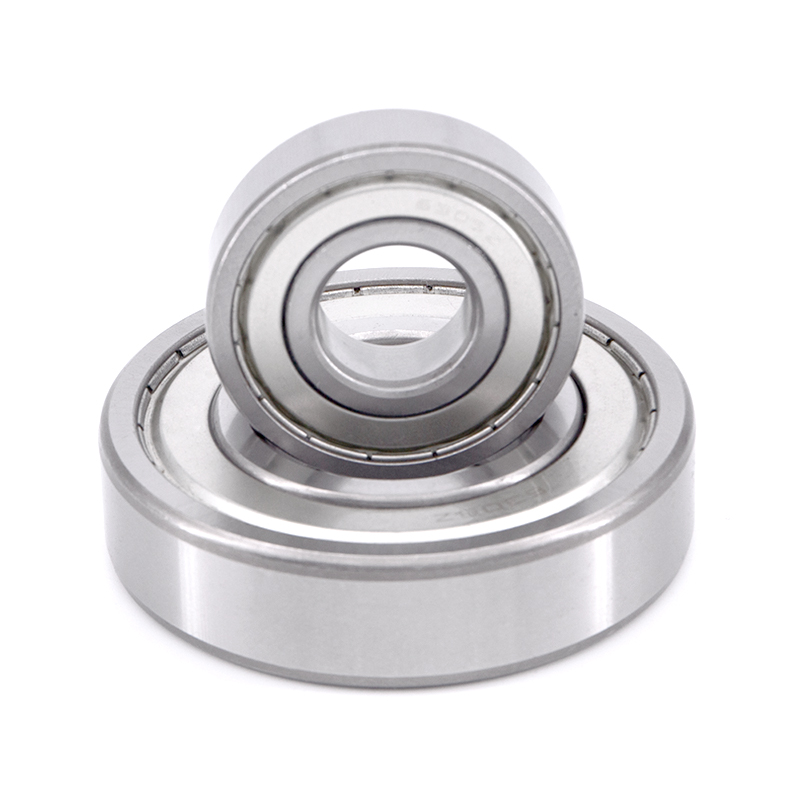

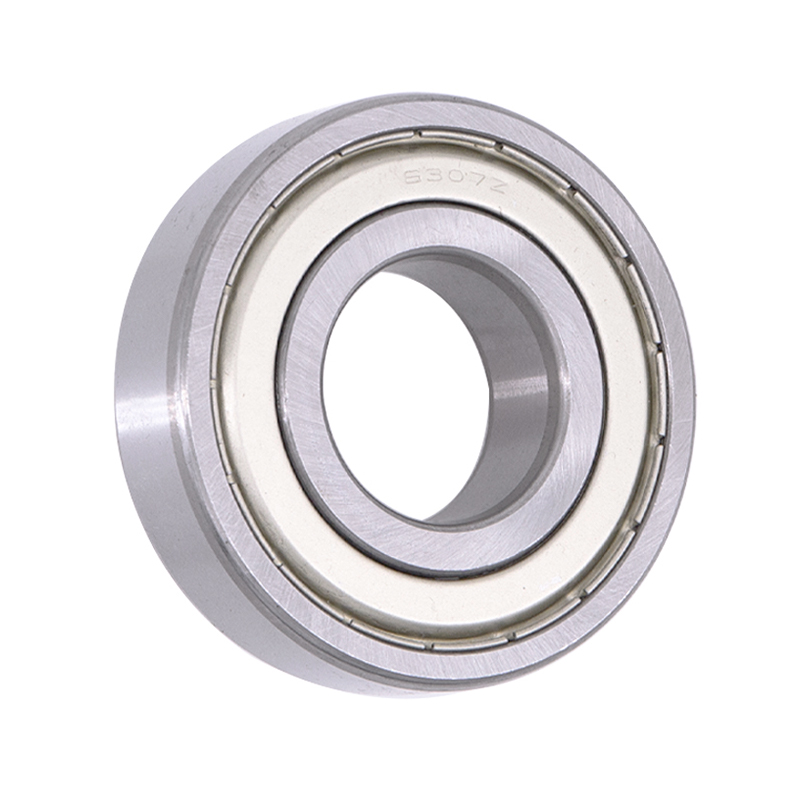

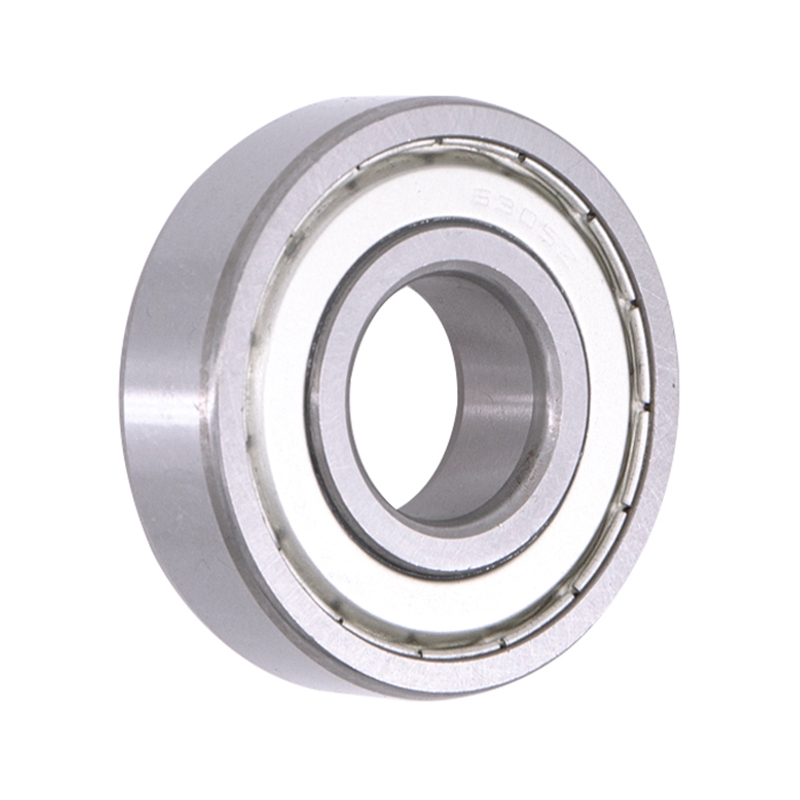

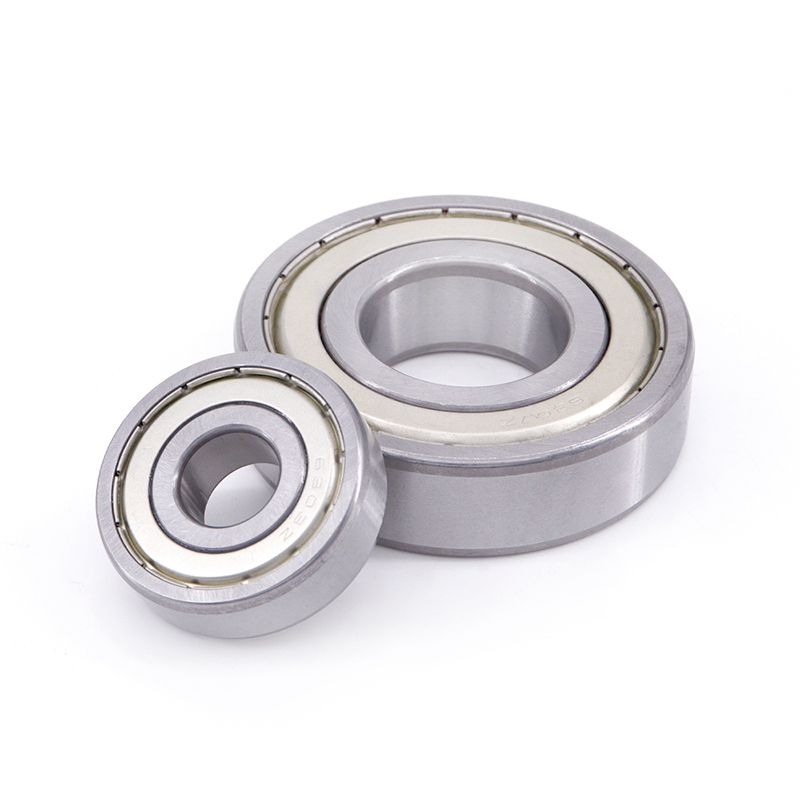

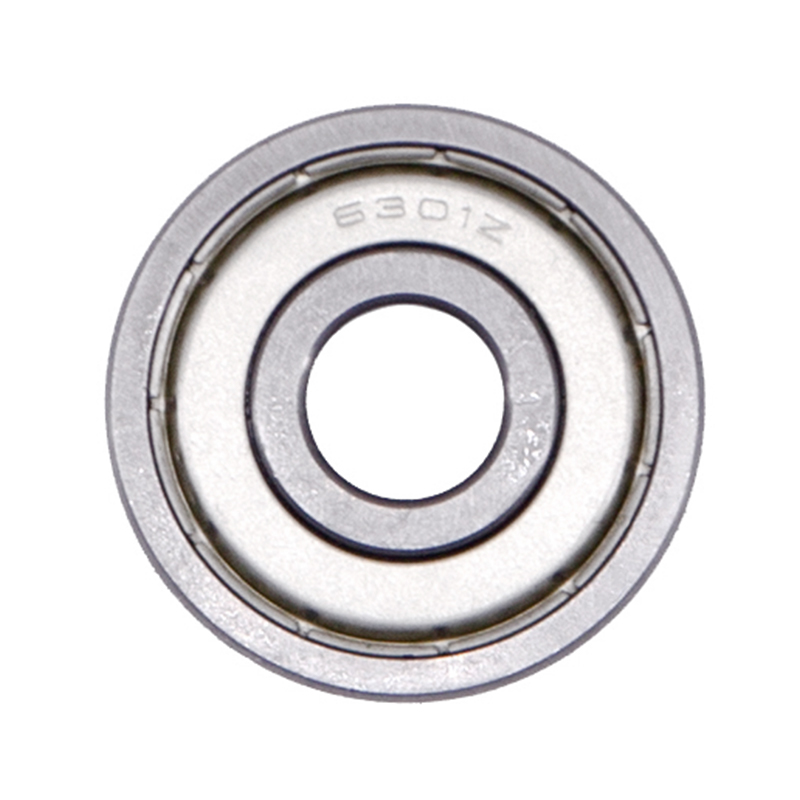

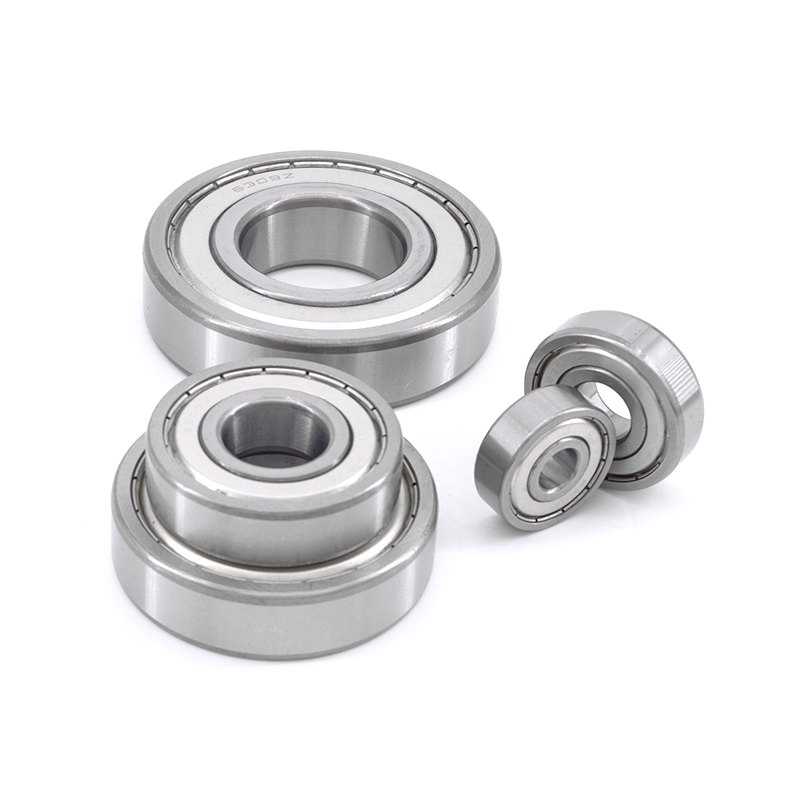

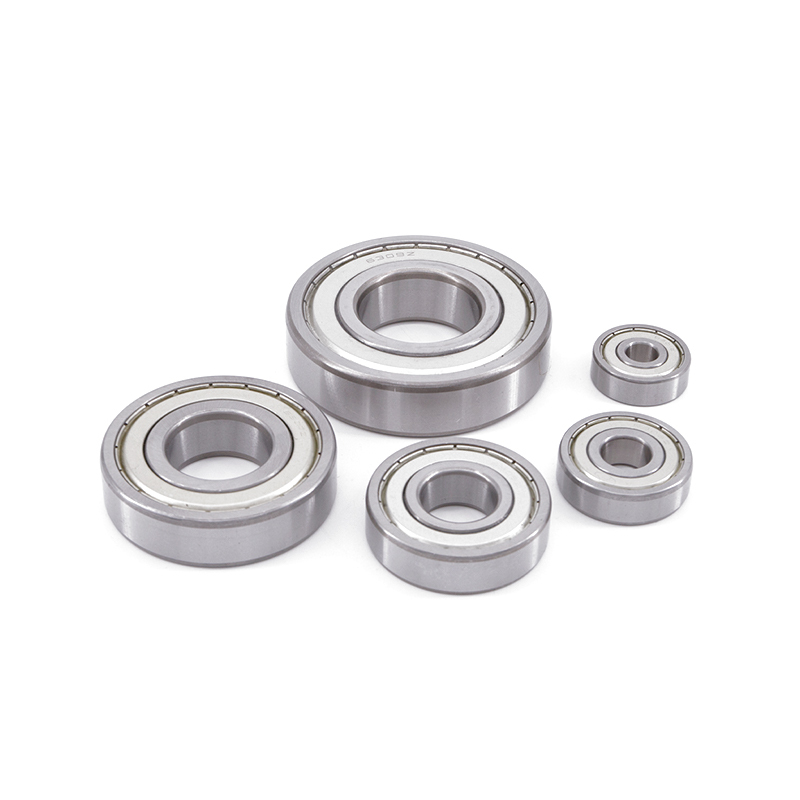

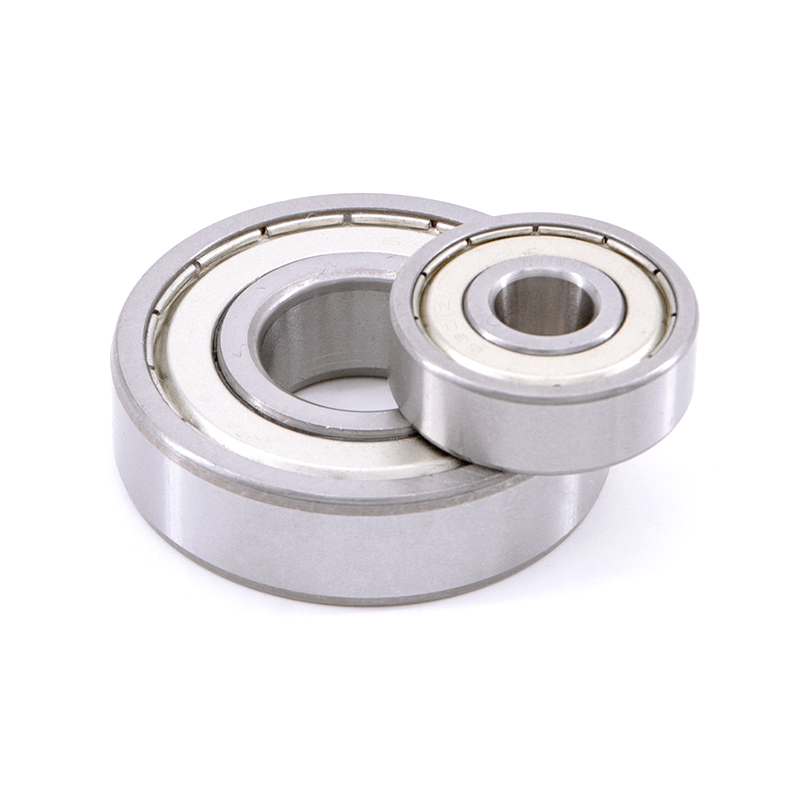

6301Z 6303Z 6305Z 6307Z 6309Z Auto Deep Groove Ball Bearing

The 6300 series represents the backbone of radial bearing technology in the automotive industry. Models 6301Z, 6303Z, 6305Z, 6307Z, and 6309Z are single-row deep groove ball bearings, distinguished by the "Z" suffix, which denotes a metal shield on one side. These bearings are engineered to manage high speeds, radial loads, and moderate axial loads in critical automotive applications.

Standard Dimensions

The 6300 series follows ISO dimensional standards, ensuring interchangeability. The bore diameter increases incrementally with the model number. Note: The "Z" shield indicates a metal shield on one side, maintaining the same boundary dimensions as the open variant.

Structural Design

• Single-Row Deep Groove: The raceways are continuous arcs with deep grooves, allowing the bearing to support radial loads while accommodating bidirectional axial loads.
• Metal Shield (Z): The "Z" shield is a non-removable, stamped steel shield pressed into the outer ring. It provides a labyrinth-style seal that prevents large contaminants (dust, debris) from entering while offering very low frictional torque.
• Cage Material: Typically constructed from pressed steel (J steel cage) for high strength and resistance to high operating temperatures common in automotive environments. Higher-grade variants may utilize polyamide cages for noise reduction.
• Internal Clearance: Automotive applications generally utilize CN (Normal) clearance or C3 clearance to accommodate thermal expansion and shaft fit tolerances during engine or drivetrain operation.

Load Capacity

• Radial Loads: Designed to excel under heavy radial loads. The deep groove geometry ensures a large contact angle between the balls and raceways, distributing stress evenly across the assembly.
• Axial Loads: These bearings can sustain significant axial (thrust) loads in both directions. However, as the axial load increases relative to the radial load, the service life may decrease. For applications with predominant thrust loads, angular contact bearings are preferred.
• Load Rating Progression: As the table illustrates, load capacity scales significantly with size. For instance, the 6309Z offers over five times the dynamic load capacity of the 6301Z, making it suitable for high-torque rotating shafts.

Performance Characteristics

• High-Speed Capability: Deep-groove geometry, combined with the low-friction characteristics of the "Z" shield, allows these bearings to operate at high rotational speeds, making them ideal for alternators, tensioners, and gearboxes.
• Low Torque: Unlike rubber-sealed (2RS) variants, the metal shield (Z) does not make contact with the inner ring. This results in minimal starting and running torque, improving fuel efficiency and reducing heat generation.
• Durability: Manufactured from high-carbon chromium-bearing steel (typically SUJ2 / GCr15), these units offer high hardness (60–64 HRC) and fatigue resistance, capable of withstanding shock loads encountered in drivetrain applications.
• Maintenance: The "Z" configuration offers protection against contamination but is not fully sealed. These bearings are typically pre-lubricated with high-quality grease (often lithium-based or synthetic for extreme temperatures) and are considered "lubricated for life" under normal operating conditions.

Industrial Applications

Due to their robust design and specific shielding, the 6300Z series is prevalent in the following automotive systems:

• 6301Z & 6303Z (Small Chassis & Accessories):

Idler pulleys and tensioners for serpentine belts

Electric cooling fan motors

Starter motor armatures

Water pump pulleys (secondary support)

• 6305Z (Mid-Size Powertrain):

Alternator front and rear supports

Manual transmission input shafts

Clutch release mechanisms (as support bearings)

Agricultural light-duty PTO shafts

• 6307Z & 6309Z (Heavy-Duty & Drivetrain):

Front wheel hubs (non-driven wheels)

Electric vehicle (EV) drive motor shafts

Heavy-duty truck gearbox countershafts

Industrial pumps and compressors within automotive manufacturing lines

Steering column shafts (larger commercial vehicles)
